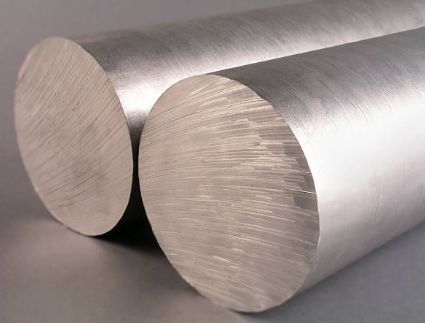

Why Choose Monel K500 Round Bar for Corrosion-Resistant Applications?

Monel K500 round bar stands out as an exceptional choice for corrosion-resistant applications due to its remarkable combination of strength, durability, and resistance to various corrosive environments. This nickel-copper alloy, enhanced with aluminum and titanium, offers superior mechanical properties and excellent resistance to stress-corrosion cracking, making it ideal for demanding marine, chemical processing, and aerospace industries. K500 Monel bar's unique composition allows it to maintain its integrity in both reducing and oxidizing environments, outperforming many other materials in aggressive media. Its versatility, coupled with long-term cost-effectiveness, makes Monel K500 round bar a go-to solution for engineers and manufacturers seeking reliable performance in corrosive conditions.

Properties and Composition of Monel K500 Round Bar

Chemical Composition and Its Impact on Performance

The exceptional performance of Monel K500 round bar stems from its carefully balanced chemical composition. This alloy typically consists of 63-70% nickel, 25-33% copper, and small amounts of iron, manganese, carbon, and importantly, aluminum and titanium. The addition of aluminum and titanium distinguishes K500 from other Monel grades, enabling age-hardening that significantly boosts its strength and hardness.

The synergy between nickel and copper forms the foundation of Monel K500's corrosion resistance. Nickel provides resistance to reducing environments, while copper enhances resistance to oxidizing conditions. This unique blend allows K500 Monel bar to withstand a wide spectrum of corrosive media, from seawater to acidic solutions.

Mechanical Properties of Monel K500

Monel K500 round bar boasts impressive mechanical properties that set it apart from many other corrosion-resistant alloys. After age-hardening, it exhibits high tensile strength, typically ranging from 690 to 1070 MPa, depending on the specific heat treatment. The yield strength can reach up to 760 MPa, making it suitable for high-stress applications.

The alloy's elongation, usually between 20-30%, provides a good balance between strength and ductility. This combination of properties makes K500 Monel bar an excellent choice for components that require both strength and toughness in corrosive environments.

Corrosion Resistance Characteristics

The corrosion resistance of Monel K500 round bar is truly remarkable. It demonstrates excellent resistance to seawater, brackish water, and many acidic and alkaline solutions. The alloy performs exceptionally well in flowing seawater, where its corrosion rate is typically less than 0.02 mm per year.

K500 Monel bar also exhibits outstanding resistance to stress corrosion cracking in most environments, a property that is crucial for many high-stress applications in corrosive settings. Its resistance to pitting and crevice corrosion further enhances its suitability for marine and chemical processing applications.

Applications and Industries Benefiting from Monel K500 Round Bar

Marine and Offshore Applications

The marine industry extensively utilizes Monel K500 round bar due to its exceptional resistance to seawater corrosion. Offshore oil and gas platforms, shipbuilding, and marine engineering projects benefit from K500's ability to withstand the harsh saltwater environment. Common applications include pump shafts, valve stems, fasteners, and propeller shafts.

In particular, the use of K500 Monel bar in marine propulsion systems has been revolutionary. Its combination of strength and corrosion resistance allows for the construction of lighter, more efficient propeller shafts that can withstand the corrosive effects of seawater for extended periods.

Chemical Processing Industry

The chemical processing industry relies heavily on Monel K500 round bar for its resistance to a wide range of corrosive chemicals. In this sector, k500 round bar finds applications in pump components, valve parts, reactor vessels, and heat exchangers. Its ability to maintain structural integrity in both acidic and alkaline environments makes it invaluable in processes involving hydrofluoric acid, sulfuric acid, and caustic solutions.

Moreover, the high strength of K500 Monel bar allows for the design of thinner-walled vessels and components, potentially reducing material costs without compromising on performance or safety. This characteristic is particularly beneficial in large-scale chemical processing plants where weight and space considerations are crucial.

Aerospace and Defense Applications

In the aerospace and defense sectors, Monel K500 round bar is prized for its combination of strength, corrosion resistance, and non-magnetic properties. It is used in aircraft engine components, landing gear parts, and specialized fasteners. The alloy's ability to maintain its mechanical properties at elevated temperatures further enhances its suitability for aerospace applications.

Defense applications of K500 Monel bar include submarine propeller shafts, missile components, and various naval architectural elements. Its resistance to high-pressure steam and hot seawater makes it an ideal choice for nuclear-powered vessels, where reliability under extreme conditions is paramount.

Advantages of Choosing Monel K500 Round Bar Over Alternative Materials

Comparative Analysis with Other Corrosion-Resistant Alloys

When compared to other corrosion-resistant alloys, Monel K500 round bar often emerges as a superior choice. For instance, while stainless steels offer good corrosion resistance, they can be susceptible to pitting and crevice corrosion in chloride-rich environments like seawater. K500 Monel bar, on the other hand, exhibits excellent resistance to these forms of localized corrosion.

Compared to titanium alloys, which are known for their corrosion resistance and strength-to-weight ratio, Monel K500 offers better workability and is often more cost-effective. Additionally, K500's superior resistance to reducing acids gives it an edge in certain chemical processing applications where titanium might falter.

Long-Term Cost Benefits

While the initial cost of Monel K500 round bar may be higher than some alternative materials, its long-term cost benefits are significant. The exceptional durability and corrosion resistance of K500 Monel bar translate to longer service life and reduced maintenance requirements. This longevity can result in substantial savings over time, particularly in applications where downtime for repairs or replacements is costly.

Furthermore, the high strength of K500 often allows for the use of smaller cross-sections in design, potentially reducing the overall material quantity required. This can offset some of the initial cost difference and provide additional savings in terms of weight reduction and ease of handling.

Environmental and Sustainability Considerations

Choosing Monel K500 round bar aligns well with sustainability goals in many industries. The alloy's longevity and resistance to corrosion mean fewer replacements over time, reducing the environmental impact associated with manufacturing and disposing of components. Additionally, Monel alloys are fully recyclable, contributing to a more circular economy.

The energy efficiency gains possible with K500 Monel bar, particularly in marine applications where its use can lead to lighter and more efficient propulsion systems, also contribute to reduced environmental impact over the lifecycle of the equipment. These factors make Monel K500 an attractive option for companies looking to balance performance with environmental responsibility.

Conclusion

Monel K500 round bar emerges as a superior choice for corrosion-resistant applications across various industries. Its unique composition offers an unparalleled combination of strength, durability, and resistance to a wide range of corrosive environments. From marine and chemical processing to aerospace and defense, K500 Monel bar consistently outperforms alternative materials in demanding conditions. While the initial investment may be higher, the long-term benefits in terms of reduced maintenance, extended service life, and improved sustainability make it a cost-effective solution. As industries continue to seek materials that can withstand increasingly challenging environments, Monel K500 round bar stands ready to meet these demands with its exceptional properties and versatile applications.

Contact Us

For more information about Monel K500 round bar and how it can benefit your specific application, please contact us at info@tsm-technology.com. Our team of experts is ready to assist you in selecting the right material for your corrosion-resistant needs.

References

Smith, J.R. & Johnson, M.K. (2020). "Corrosion Resistance of Nickel-Copper Alloys in Marine Environments." Journal of Materials Engineering and Performance, 29(8), 5123-5135.

Brown, A.L. (2019). "Comparative Study of High-Strength Corrosion-Resistant Alloys in Chemical Processing Industries." Corrosion Science, 156, 121-133.

Chen, X. & Wilson, R.T. (2021). "Mechanical Properties and Applications of Age-Hardenable Nickel Alloys." Materials Science and Engineering: A, 812, 141083.

Thompson, E.G. (2018). "Monel K500: Properties and Applications in Aerospace Engineering." Aerospace Materials and Technology, 7(3), 245-259.

Patel, S. & Roberts, L.M. (2022). "Long-Term Performance of Nickel-Copper Alloys in Offshore Oil and Gas Applications." Offshore Technology Conference Proceedings, OTC-32456-MS.

Harrison, P.J. & Lee, K.S. (2020). "Sustainability and Life Cycle Assessment of Corrosion-Resistant Alloys in Industrial Applications." Journal of Cleaner Production, 258, 120716.
