Hastelloy C22 Sheet

Standard:ASTM，JIS，AISI，GB，DIN，EN
Form:Plate,Sheet,Coils, Foils, Strip, Flats
Thickness:0.1 milimeter to 100 milimeter Thk
Technique：Cold rolling, hot rolling, solution, annealing
Customized size and processing are supported
Payment way:T/T, L/C, can be negotitated

Send Inquiry

Download

Product Description

Your Reliable Hastelloy C22 Sheet Manufacturer & Supplier

TSM Technology Co., Ltd is a trusted global supplier of Hastelloy C22 Sheets, specializing in high-performance nickel alloys for critical applications. With over 14 years of expertise, we ensure top-quality materials with strict quality control and international certifications. Our commitment to innovation, reliability, and customer satisfaction makes us a preferred partner in the industry.

What is Hastelloy C22 Sheet?

Hastelloy C22 Sheet is a nickel-chromium-molybdenum alloy designed for superior corrosion resistance in extreme environments. It offers excellent resistance to oxidizing and reducing conditions, making it ideal for harsh chemical processing applications. With high mechanical strength and excellent formability, it is widely used in industries requiring outstanding performance in aggressive conditions.

Supply type

Hastelloy C22 Sheet has a variety of specifications - providing thin sheet, thick plates, coils, foils, and supporting customized processing.

plate

Strip

coils

Specifications
Dimensions:

T: ≤ 5mm W: 500mm - 1000mm Length: 700mm - 6000mm
Customized size needs to be confirmed with us
Delivery State: Cold Rolled
Finish: 2B, No.1, No.2, No.4, BA, 6K, Mirror Finished, 8K

Standards

ASTM B575, ASME SB575

Hastelloy C-22(UNS N06022/W.Nr.2.4602)

Chemical Composition

Alloy

C-22

min

margin

20.0

12.5

2.5

max

margin

22.5

14.5

0.0015

0.5

0.08

0.02

2.5

0.35

3.5

Physical Characteristics

Density

8.9g/cm³

Melting point

1325-1370℃

Minimum mechanical properties of alloys at room temperature

Typical mechanical properties

tensile strength Rm N/mm²

Yield Strength RP0.2 N/mm²

Elongation A5%

Test℃

Solution treatment

690

283

Room temperature

Material Characteristics

Exceptional corrosion resistance in oxidizing and reducing environments.

Excellent weldability and formability for various industrial applications.

High mechanical strength and durability under extreme conditions.

Resistant to pitting, crevice corrosion, and stress corrosion cracking.

Applications of Hastelloy C22 Sheet

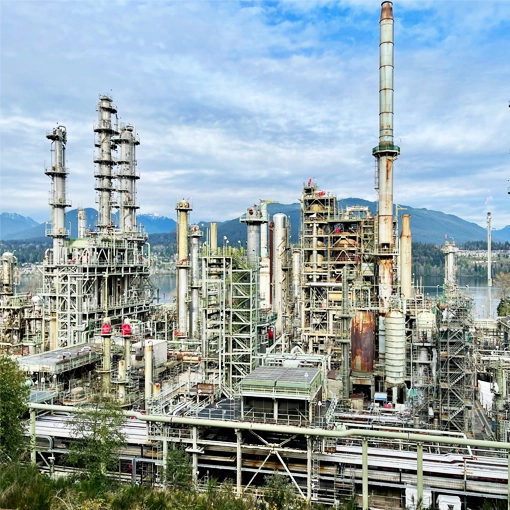

Chemical Processing: Reactors, heat exchangers, and storage tanks.

Aerospace & Marine: High-corrosion environments and structural components.

Pharmaceutical & Medical: Sterile environments requiring superior corrosion resistance.

Energy & Power: Flue gas scrubbers and pollution control equipment.

Pulp & Paper Industry: Bleaching equipment and digesters.

Why Choose Us?

Custom Processing

Available in various thicknesses, sizes, and finishes.

Competitive Pricing

Direct factory supply ensures cost-effectiveness.

Technical Support

Experienced engineers assist with material selection and application.

Global supply

business covers 60+ countries and regions to meet different market needs.

FAQ

Q: What sizes and thicknesses are available?
A: We offer 0.1mm to 100mm thickness with custom sizes upon request.

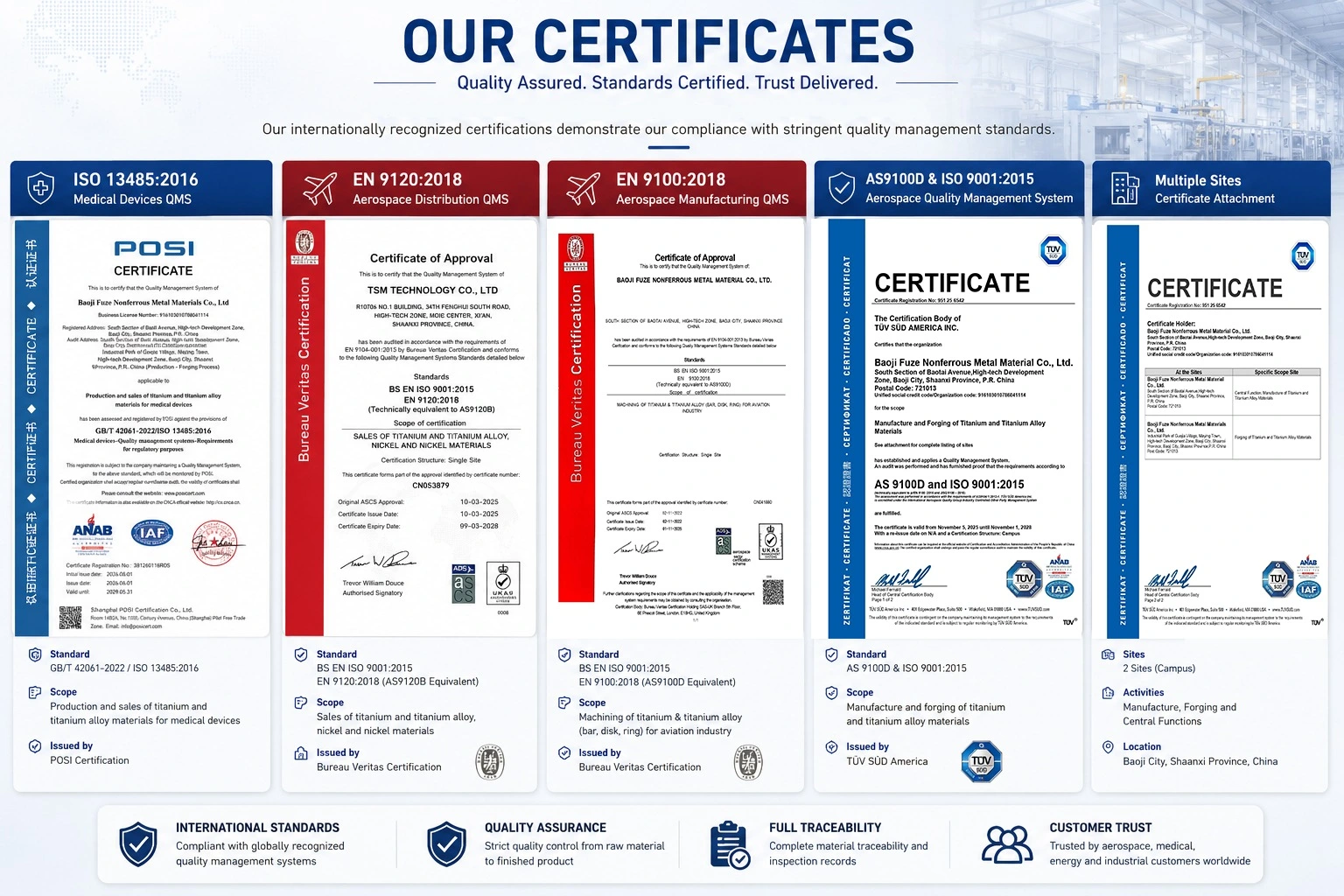

Q: Can you provide material certificates?
A: Yes, we supply mill test certificates (MTC), third-party inspection reports, and compliance documents.

Q: What are the payment terms?
A: We accept T/T, L/C, and flexible payment options based on order volume.

Q: Do you support urgent orders?
A: Yes, we provide fast-track production and expedited shipping for urgent requirements.
