Nickel 201 Wire

Standard:ASTM，JIS，AISI，GB，DIN，EN
Finish:Bright, Matte Finish, Polish Quality
Size:0.08 mm to 25.00 mm
Customized size and processing are supported
Payment way:T/T, L/C, can be negotitated

Send Inquiry

Download

Product Description

Nickel 201 Wire Manufacturer & Supplier

TSM Technology Co., Ltd is a trusted manufacturer and supplier of Nickel 201 Wire, delivering high-quality, corrosion-resistant nickel alloys for demanding industrial applications. With 14 years of experience in international trading, we ensure strict quality control and superior performance to meet global industry standards.

Nickel 201 Wire Introduction

Nickel 201 Wire is a commercially pure wrought nickel alloy (UNS N02201) known for its exceptional corrosion resistance, high thermal and electrical conductivity, and low carbon content. Its excellent mechanical properties and superior resistance to harsh environments make it ideal for chemical processing, marine, aerospace, and electronic applications.

Supply types

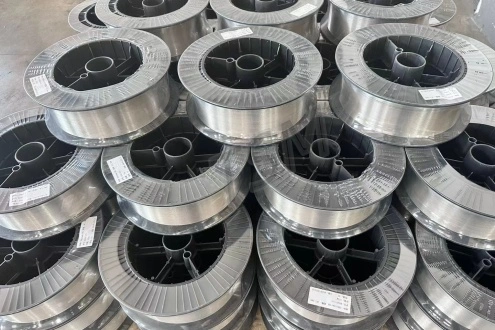

Nickel 201 wire is available in two forms: straight bars and coils. The common specifications are Φ0.08-25mm. The delivery state is solution pickled coil or straight bar. If you need customized size to meet special needs, please contact our sales representative.

Incoloy 201(N02201/2.4060/Nickel201)
Brief introduction	Nickel 201 is a pure commercial nickel with extremely low carbon content and has been approved for use in high temperature environments up to 1230°C.
Chemical Composition	%	Ni		Fe	C	Mn		S	Si		Cu
	min	Remaining amount
	max	Remaining amount		0.4	0.02	0.35		0.01	0.35		0.25
Physical Characteristics	Density		8.89g/cm³
	Melting point		1440℃
Minimum mechanical properties of alloys at room temperature	Alloy state		tensile strength Rm N/mm²				Yield Strength RP0.2 N/mm²			Elonga A5%

Material Characteristics

Corrosion Resistance: Excellent resistance to acids, alkalis, and reducing environments.

High Purity: Low carbon content minimizes carbide precipitation, preventing embrittlement.

Superior Conductivity: Exceptional thermal and electrical conductivity for critical applications.

Good Mechanical Properties: High ductility and toughness at extreme temperatures.

Weldability: Easily welded and fabricated for custom requirements.

Applications of Nickel 201 Wire

Chemical Processing: Heat exchangers, reaction vessels, and piping systems.

Electronics & Electrical Components: Battery connectors, resistance wires, and anode materials.

Aerospace & Marine: High-performance components exposed to corrosive environments.

Energy Industry: Nuclear reactors and power generation applications.

Medical Equipment: Precision instruments and specialized medical devices.

Why Choose TSM？

We are looking for partners around the world to expand our business.

Sample trial production service

Free samples or small batch trial production services help you verify product performance and reduce trial and error costs.

Customized Sizes and Specifications

We offer wire in a variety of sizes and specifications to meet your specific requirements. Whether you need a certain diameter, length, or tolerance, we can produce it for you.

Surface Treatment

We offer different surface treatments for wires, such as bright annealing, pickling, polishing, etc. to meet your needs for different applications.

High-purity material guarantee

Low-carbon nickel 201 wire (C≤0.02%), through vacuum melting and electron beam refining technology, ensures purity ≥99.6%, in line with ASTM B160 standard.

Processing Services

Provide cutting and processing services for wire according to your requirements, such as cut-to-length, cut-to-shape, etc.

After-Sales Service

We have set up a dedicated after-sales team to respond to customer needs in a timely manner and provide a flexible return and exchange policy.

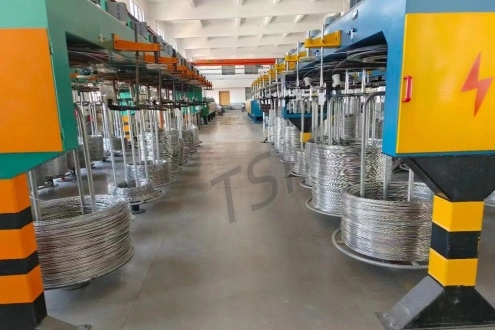

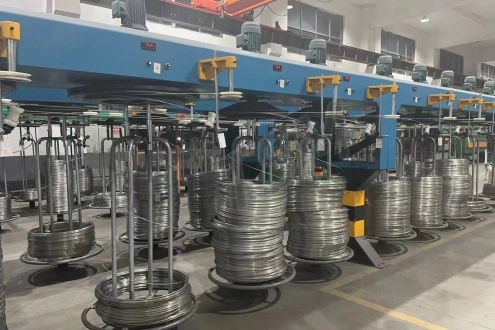

Introduction to Our Factory

Welcome to TSM, we are a leading manufacturer of high-end nickel-based alloy materials, including rods and wires. Our factory was established in 2014 and is located in Shaanxi, China, covering an area of 50,000+ square meters. We are committed to providing high-quality products and excellent services to our global customers.

Strict Quality Control

Every product we produce is rigorously inspected by our team of professional inspectors. From raw material selection to final product testing, we ensure that each product meets the highest reliability and performance standards.

Global Supply Chain

We are committed to providing reliable and efficient global delivery. We also offer competitive pricing to ensure you get the best value for your investment.

Technical Expertise

Our team of experts provides comprehensive support, from material selection to application guidance. Ensure your product meets functional and performance requirements.

FAQ

Q1: What standards does your Nickel 201 Wire comply with?
A1: Our product meets ASTM B160, ASTM B162, JIS, AISI, GB, DIN, and EN standards.

Q2: Can you provide test certificates?
A2: Yes, we provide mill test certificates (MTC), third-party inspection reports, and other quality documentation.

Q3: What are your payment terms?
A3: We accept T/T, L/C, and negotiable payment options for bulk orders.

Q4: Do you support custom orders?
A4: Yes, we manufacture it in custom sizes and finishes, including bright, matte, and polished.

Contact Us

Ready to source high-quality Nickel 201 Wire? Contact us today for competitive pricing and expert support.
Email: info@tsm-technology.com
