Hastelloy C276 Sheet

Standard:ASTM，JIS，AISI，GB，DIN，EN
Form:Plate,Sheet,Coils, Foils, Strip, Flats
Thickness:0.1 milimeter to 100 milimeter Thk
Technique：Cold rolling, hot rolling, solution, annealing
Customized size and processing are supported
Payment way:T/T, L/C, can be negotitated

Send Inquiry

Download

Product Description

Your Trusted Supplier for Hastelloy C276 Sheet

TSM Technology Co., Ltd is a leading supplier and stockist of Hastelloy C276 Sheet, delivering high-quality, corrosion-resistant nickel alloy materials to industries worldwide. With 14 years of expertise, we ensure strict quality control and timely delivery to meet the needs of aerospace, chemical processing, marine, and energy sectors.

What is Hastelloy C276 Sheet?

Hastelloy C276 Sheet is a nickel-molybdenum-chromium superalloy designed for extreme corrosion resistance. It offers exceptional performance in highly aggressive environments, including chemical plants, marine applications, and high-temperature processing industries. Its outstanding weldability and resistance to stress corrosion cracking make it a preferred choice for engineers and manufacturers handling severe service conditions.

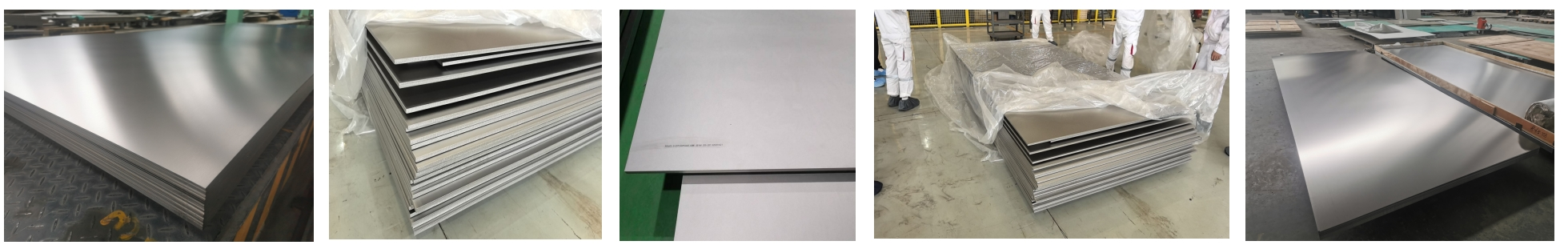

Supply type

Hastelloy C276 Sheet supply types include cold-rolled sheet (thickness 0.1-5mm), hot-rolled sheet (6-50mm), width 1000-2000mm, length can be customized, support striping, cutting and solution treatment.

plate

Strip

Coil

Product Specifications

Standard: ASTM B575、ASME SB575

Form: Plate, Sheet, Coils, Foils, Strip, Flats

Thickness: 0.1mm to 100mm

Technique: Cold rolling, hot rolling, solution annealing

Customization: Sizes and processing available

Payment Terms: T/T, L/C (Negotiable)

Hastelloy C-276(UNS N10276W.Nr.2.4819/NS336)
Chemical Composition	Alloy	%	Ni		Cr	Fe	Mo		C	Mn	Si	S	P	Co	V	W
	Hastelloy C	min	margin		14.5	4	15									3
		max	margin		16.5	7	17		0.08	1	1	0.03	0.04	2.5	0.35	4.5
	C276	min	margin		14.5	4	15									3
		max	margin		16.5	7	17		0.01	1	0.08	0.03	0.04	2.5	0.35	4.5
Physical Characteristics	Density					8.9g/cm³
	Melting point					1325-1370℃
Minimum mechanical properties of alloys at room temperature	Typical mechanical properties			tensile strength Rm N/mm²				Yield Strength RP0.2 N/mm²			Elongation A5%			Brinell hardness HB
	Solution treatment			690				283			40

Material Characteristics

Superior Corrosion Resistance: Outstanding resistance to oxidizing and reducing environments.

Excellent Weldability: Minimal carbide precipitation during welding, preventing intergranular corrosion.

High Strength & Durability: Suitable for extreme conditions, including high temperatures and pressure.

Non-Magnetic: Suitable for specialized applications requiring non-magnetic properties.

Applications of Hastelloy C276 Sheet

Hastelloy C276 Sheet is widely used in industries requiring extreme corrosion resistance and durability:

Chemical Processing: Heat exchangers, pressure vessels, and piping systems.

Aerospace & Defense: Components exposed to aggressive environments.

Marine & Offshore: Desalination plants, shipbuilding, and oil & gas applications.

Energy Sector: Nuclear reactors, geothermal power plants, and pollution control equipment.

Why Choose Us?

Custom Solutions

Offering tailored sizes, thicknesses (0.1mm to 100mm), and processing methods.

Strict Quality Control

Every product undergoes rigorous inspection by professional inspectors.

Global Supply Chain

Reliable and efficient worldwide delivery with competitive pricing.

Technical Expertise

Expert support for material selection and application guidance.

FAQ

Q: What thicknesses are available for it?
A: We offer thicknesses from 0.1mm to 100mm, with custom sizes available upon request.

Q: Do you provide material certificates?
A: Yes, all our products come with Mill Test Certificates (MTC) and compliance documents.

Q: Can you supply in bulk quantities?
A: Absolutely! We cater to large-scale industrial needs with high-volume supply capabilities.
