Inconel 601 Tube

Grade：Inconel 601 (UNS NO6601/W.Nr2.4851)
Standard:ASTM B163/B167/B829
Outside Diameter:6.0-114 mm
Wall Thickness:0.5-15 mm
Length:Max.15000mm (the maximum length is for the scope of special diameters and walls)
Customized size and processing are supported

Send Inquiry

Download

Product Description

Your Trusted Inconel 601 Tube Supplier and Manufacturer

TSM Technology Co., Ltd is a leading manufacturer and supplier of Inconel 601 Tube, delivering superior nickel alloy solutions for industries requiring high-temperature resistance and oxidation protection.

With over 14 years of expertise, we ensure strict quality control, reliable supply, and exceptional customer service to meet the demanding needs of aerospace, petrochemical, energy, and chemical processing industries.This content looks too robotic

Introduction to Inconel 601 Tube

Inconel 601 Tube is a high-performance nickel-chromium alloy designed for outstanding resistance to high-temperature oxidation and corrosion. It is widely used in extreme environments where mechanical strength and thermal stability are crucial. With excellent resistance to carburization and sulfur-containing atmospheres, It is a preferred choice for applications in heat treatment, chemical processing, and power generation industries.

Specification

OD: φ3 - φ600mm

WT: 0.5 - 30mm

L ≤ 12000mm
Please confirm with us for customized sizes

Standards

ASTM B167/ASME SB167
ASTM B163
ASTM B751/ASME SB751
ASTM B775/ASME SB775
ASTM B829/ASME SB829

Inconel 601(UNS NO6601/W.Nr2.4851)

Chemical Composition

min

max

margin

0.1

1.5

0.5

0.015

0.02

1.7

Physical Characteristics

Density

8.1g/cm³

Meling poht

1320-1370℃

Minimum mechanical properties of alloys at room temperature

Typical mechanical properties

tensile strength Rm N/mm²

Yield Strength RP0.2 N/mm²

Elongation A5%

Brinell hardness HB

Annealing treatment

650

300

Solution treatment

600

240

=200

Key Features of Inconel 601 Tube

Superior High-Temperature Resistance: Maintains strength and oxidation resistance up to 1200°C.

Exceptional Corrosion Resistance: Performs well in oxidizing and reducing environments.

Excellent Mechanical Strength: High durability under extreme heat and mechanical stress.

Good Fabricability: Easily welded and formed for custom applications.

Outstanding Carburization Resistance: Ideal for use in high-carbon environments.

Applications of Inconel 601 Tube

Aerospace & Gas Turbines: Used in jet engine components and afterburner liners.

Heat Treatment Equipment: Suitable for industrial furnaces and heat exchangers.

Chemical Processing: Withstands corrosive chemical environments and process piping.

Power Generation: Utilized in superheater tubes and boiler components.

Petrochemical Industry: Used in reformer tubes and catalyst support grids.

Our Service

We are looking for partners around the world to expand our business.

Customized solutions

We provide customized product solutions according to the special needs of customers, including size, wall thickness, surface treatment, processing technology, etc.

Zero defect delivery commitment

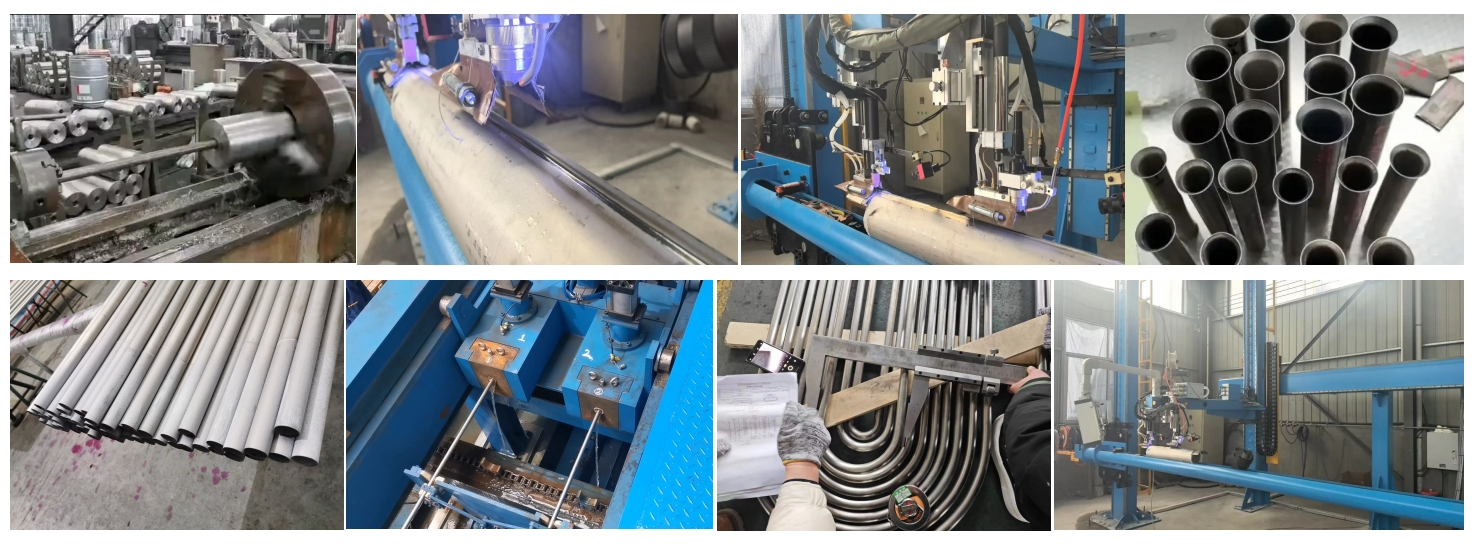

Triple quality inspection (ultrasonic flaw detection, eddy current detection, water pressure test) ensures 100% pass rate

Full-process quality control

From raw material procurement to finished product delivery, we implement full-process quality control, and each pipe meets high standards to ensure that quality problems can be traced.

Processing services

Provide cutting, welding, bending and other processing services to meet customers' special processing needs.

Rich product inventory

We have a variety of specifications, sizes and wall thicknesses of nickel and nickel alloy pipes in stock to meet the diverse needs of customers.

Technical support and consultation

Provide full-process technical support from material selection to processing and molding to help customers solve technical problems.

FAQ

Q: What certifications do you have for your Inconel 601 Tube?

A: Our products are certified to meet international standards such as ISO 9001, ISO 14001, and ISO 45001.

We also provide material test reports and certificates of conformity to ensure compliance with industry regulations.

Q: Can you provide custom solutions for specific applications?

A: Absolutely!

Our team of experts can work with you to develop custom solutions tailored to your specific requirements.

We offer technical support and R&D collaboration to ensure your project's success.

Q: How do you ensure timely delivery?

A: We maintain a robust supply chain and inventory management system to ensure consistent availability and timely delivery.

We understand the importance of keeping your production on schedule and will do everything possible to meet your deadlines.
