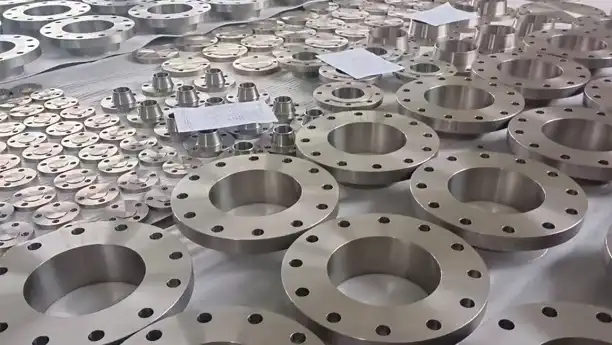

Incoloy 800 Flange

Specifications：ASTM B564 / ASME SB564
Size：1/2″ (15 NB) to 48″ (1200NB)
Type：TH (THreaded) flange, SO (Slip-On Welding) flange, BL (Blind) flange, SW (Socket Welding) flange, LJ (Lapped) flange, WN (Welding Neck) flange
Customized size and processing are supported
Payment way:T/T, L/C, can be negotitated"

Send Inquiry

Download

Product Description

Your Trusted Incoloy 800 Flange Manufacturer & Supplier

TSM Technology Co., Ltd is a leading global supplier of Incoloy 800 Flange, known for its superior quality, reliability, and performance. Our strict quality control system ensures that every flange meets industry standards, offering excellent resistance to high temperatures and corrosion. With over 14 years of expertise, we provide customized solutions to meet your specific industrial needs.

What is the Incoloy 800 Flange?

Incoloy 800 Flange is a high-performance nickel-iron-chromium alloy flange designed to withstand extreme temperatures and corrosive environments. It is widely used in industries such as chemical processing, power generation, and petrochemicals due to its excellent strength, oxidation resistance, and metallurgical stability. This flange is ideal for applications that require heat and corrosion resistance, making it a reliable choice for various engineering and industrial processes.

Incoloy 800 flange supply types and specifications

Supply Type

Incoloy 800 flanges are available in flexible forms, mainly divided into:

Standard flanges:

Comply with international standards (such as ANSI/ASME B16.5, DIN/EN 1092-1), covering slip-on flanges, butt-welded flanges, blind flanges and other types.

Conventional sizes (DN15-DN1200, pressure levels PN6 to PN160) are available from stock, suitable for high temperature and high pressure pipeline systems.

Non-standard custom flanges:

Customize special specifications according to your needs (such as large-diameter flanges, special-shaped sealing surface designs or industrial-grade thick-walled flanges).

Support surface treatment optimization (pickling, sandblasting, electrolytic polishing) and pre-processing (surfacing nickel-based alloy sealing layer, precision drilling of bolt holes).

Materials and processes

Processing technology:

Free forging or die forging technology, combined with solution annealing (1150-1180℃ water quenching), eliminate residual stress and improve creep resistance.

During the finishing stage, the dimensional accuracy is controlled by CNC machine tools (tolerance ±0.1mm), and the sealing surface roughness reaches Ra≤3.2μm.

Quality inspection:

Ultrasonic testing (UT) detects internal defects, and penetrant testing (PT) or radiographic testing (RT) verifies surface and near-surface integrity.

Provide material certificates (EN 10204 3.1/3.2), heat treatment records and third-party inspection reports.

Incoloy 800/800H/800HT (UNS N08800/UNS N08810/UNS N08811)
Chemical Composition		%		Ni		Cr	Fe		C	Mn	Si		Cu	S	AL	Ti
	800	min		30		19									0.15	0.15
		max		35		23	margin		0.10	1.5	1		0.75	0.015	0.60	0.60
	800H	min		30		19			0.05						0.15	0.15
		max		35		23	margin		0.1	1.5	1		0.75	0.015	0.60	0.60
	800HT	min		30		19			0.06						0.15	0.15
		max		35		23	margin		0.10	1.5	1		0.75	0.015	0.60	0.60
		Al + Ti: 0.85-1.20
Physica Characteristics	Density				8.0g/cm³
	Melting point				1350-1400℃
Minimum mechanical properties of alloys at room temperature	alloy		Typical mechanical properties					tensile strength Rm N/mm²				Yield Strength RP0.2 N/mm²			Elongation A5%
	800							500				210			35
	800H							450				180			35

Material Characteristics

High resistance to oxidation and carburization at high temperatures.

Excellent mechanical properties and structural stability.

Superior corrosion resistance in acidic and high-temperature environments.

Good creep and rupture strength.

Product Standards

ASTM B564 / ASME SB564

ANSI, DIN, JIS, GB standards available

Custom specifications upon request

Applications of Incoloy 800 Flange

Petrochemical Industry – Used in high-temperature process piping and heat exchangers.

Chemical Processing – Suitable for corrosive environments and reactor vessels.

Power Generation – Applied in steam and gas turbines, boiler components.

Marine & Offshore – Used in seawater systems due to its corrosion resistance.

Aerospace & Engineering – High-strength performance in extreme conditions.

Why Choose Us?

Customization Options

We offer tailored solutions for your unique specifications.

Global Availability

Reliable and timely delivery worldwide.

Competitive Pricing

Cost-effective solutions with bulk order discounts.

Customer Support

Dedicated team for technical assistance and after-sales service.

FAQ

Q1: What are the available sizes of Incoloy 800 Flange?
A1: We offer sizes from 1/2″ (15 NB) to 48″ (1200NB), with custom sizing options available.

Q2: What types of flanges do you provide?
A2: We supply Threaded (TH), Slip-On Welding (SO), Blind (BL), Socket Welding (SW), Lapped (LJ), and Welding Neck (WN) flanges.

Q3: What is the minimum order quantity (MOQ)?
A3: MOQ depends on the flange type and size; please contact us for details.

Q4: Do you provide certifications for your products?
A4: Yes, we offer mill test certificates (MTC) and third-party inspection reports upon request.

Q5: What are your payment terms?
A5: We accept T/T, L/C, and other negotiable payment options.
