Monel K500 Tube

Grade：MonelK-500(UNS No. N05500)
Standard:ASTM B163/ASME SB163, ASTM B165/ASME SB165
Outside Diameter:6.0-114 mm
Wall Thickness:0.5-15 mm
Length:Max.15000mm (the maximum length is for the scope of special diameters and walls)
Customized size and processing are supported

Send Inquiry

Download

Product Description

Your Trusted Monel K500 Tube Supplier & Manufacturer

TSM Technology Co., Ltd is a leading manufacturer and supplier of Monel K500 Tube, providing high-quality nickel alloy tubing for aerospace, marine, chemical processing, and energy industries. With over 14 years of experience, we ensure strict quality control, excellent corrosion resistance, and reliable performance in extreme environments.

Monel K500 Tube Introduction

Monel K500 Tube is a nickel-copper alloy with superior corrosion resistance, high strength, and excellent fatigue resistance. This precipitation-hardened alloy offers enhanced mechanical properties while maintaining the outstanding corrosion resistance of Monel 400. It is widely used in high-performance applications requiring durability and reliability in harsh conditions.

Product Type

Monel K500 pipe supply types mainly include seamless pipes, welded pipes, thin-walled pipes and customized pipe fittings (such as elbows, tees, etc.). Supports heat treatment processes such as solid solution and annealing.

Monel K500 large diameter seamless pipe

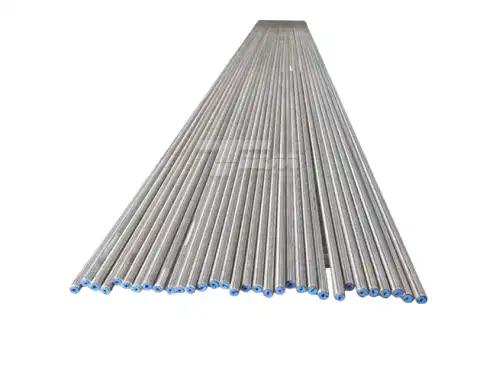

Monel K500 straight pipe

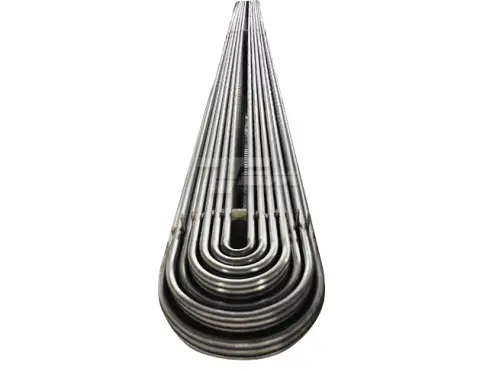

Monel K500 U-shaped pipe

Monel K500 Pipe Dimensions and Available Standards

Monel K500 pipe is available in the following sizes:
Outside Diameter (OD): 6mm to 500mm
Wall Thickness: 0.5mm to 25mm
Length: Custom lengths, typically 3m to 12m

Standards: ASTM B163/ASME SB163, ASTM B165/ASME SB165

Monel K-500(UNS N05500)
Chemical Composition	ALLOY	%	Ni		C u	Fe		AL	C		Ti	M n		Si	P
	500	min	63		27			2.30			0.35
		max			33	2.0		3.15	0.08		0.85	1.5		0.5	0.01
Physical Characteristics	Density 8.05g/cm³
	Melting point 1288-1343℃
Minimum mechanical properties of alloys at room temperature	Typical mechanical properties			tensile strength Rm N/mm²			Yield Strength RP0.2 N/mm²			Elongation A5%			Test ℃
	Solution treatment			1100			790			20			Normal temperature

Material Characteristics

High Strength & Hardness – Precipitation-hardening increases tensile and yield strength.

Superior Corrosion Resistance – Resistant to seawater, acids, and alkaline environments.

Excellent Fatigue & Wear Resistance – Ideal for demanding mechanical applications.

Non-Magnetic & Low Permeability – Suitable for sensitive electronic and marine applications.

Thermal Stability – Performs well in high-temperature environments.

Applications of Monel K500 Tube

Aerospace & Defense: Aircraft components, landing gear, and structural supports.

Marine & Offshore: Propeller shafts, pump shafts, and seawater piping systems.

Chemical & Petrochemical: Heat exchangers, process piping, and pressure vessels.

Energy & Power Plants: Oil and gas extraction equipment, nuclear reactors.

Electronics & Engineering: High-performance sensor housings, precision mechanical parts.

Our Service

We are looking for partners around the world to expand our business.

Full-category supply

seamless pipe, welded pipe, thin-walled pipe (wall thickness 0.5-30mm), outer diameter 6-500mm can be customized.

Heat treatment optimization

solid solution state, annealing state, aging state optional, accurately matching working conditions.

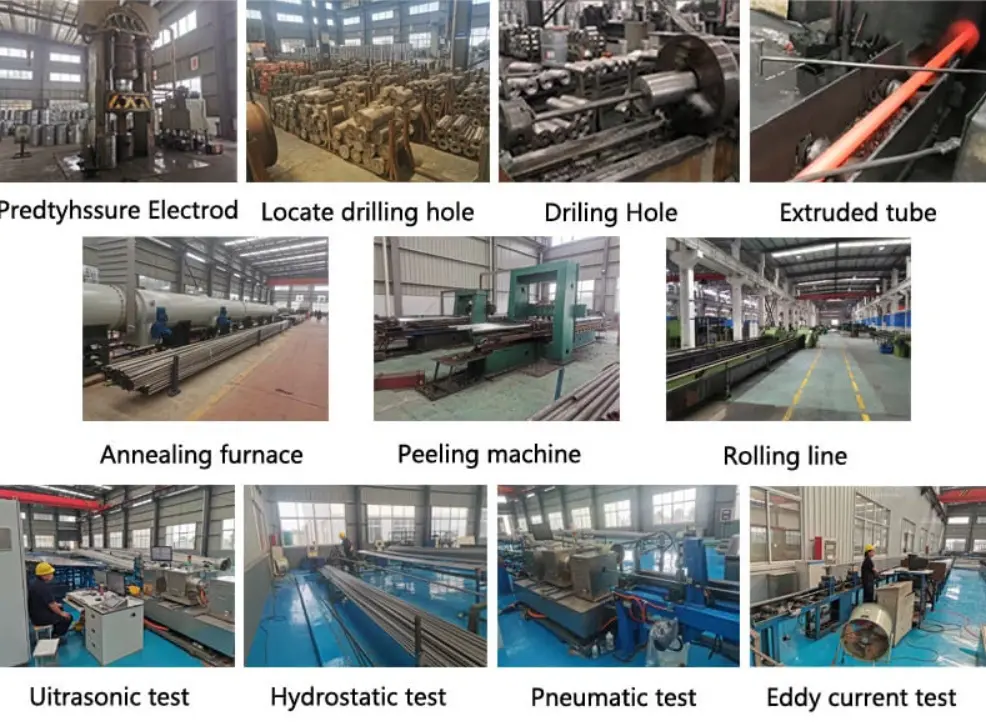

Full-process quality control

PMI composition analysis, UT/RT non-destructive testing, in line with ASTM B165/ASME SB165 standards.

Processing services

Provide cutting, welding, bending and other processing services to meet customers' special processing needs.

Reliable global supply

With global distribution capabilities, we can provide reliable logistics solutions no matter where the customer is.

Extensive product inventory

We have a large inventory of nickel and nickel alloy tubes in a variety of specifications, sizes and wall thicknesses to meet the diverse needs of our customers.

FAQ

Q: What standards do TSM Monel K500 Tubes comply with?

A: Our products adhere to ASTM B161, B725, B775, ASME SB161, SB725, and SB775 standards.

Q: What sizes and dimensions are available?

A: We offer tubes with the following specifications:

Outside Diameter: 6.0-114 mm

Wall Thickness: 0.5-15 mm

Length: Up to 15000 mm (custom lengths available)

Q: Can you provide certification and test reports?

A: Yes, all tubes come with mill test certificates (MTC), chemical composition reports, mechanical property tests, and third-party inspection reports upon request.

Q: What industries typically use this product?

A: Aerospace, marine, offshore oil and gas, chemical processing, power generation, and high-performance engineering industries.
