Nickel 201 Sheet

Standard:ASTM，JIS，AISI，GB，DIN，EN
Form:Plate,Sheet,Coils, Foils, Strip, Flats
Thickness:0.1 milimeter to 100 milimeter Thk
Technique：Cold rolling, hot rolling, solution, annealing
Customized size and processing are supported
Payment way:T/T, L/C, can be negotitated

Send Inquiry

Download

Product Description

Nickel 201 Sheet Manufacturer & Supplier

TSM Technology Co., Ltd is a leading Nickel 201 Sheet manufacturer and supplier, specializing in high-quality nickel alloy products. Our product is known for its excellent corrosion resistance, high thermal conductivity, and superior mechanical properties. With a strict quality control system, we ensure that each sheet meets global industry standards, providing our customers with reliability and performance.

Nickel 201 Sheet Introduction

Nickel 201 Sheet is a commercially pure (99.6% Ni) wrought nickel material that offers exceptional resistance to corrosion and oxidation. Due to its low carbon content, it is highly resistant to embrittlement at high temperatures, making it ideal for demanding industrial applications. This sheet exhibits excellent mechanical properties and is particularly suitable for chemical processing, aerospace, and electronic applications.

plates

sheets

coil

stri

Dimensions:

Thickness：Hot rolled:3.0-180mm，Cold rolled:0.15mm-10mm

Width：10~2000mm

Length：1000mm-6000mm or as customer' s requirement

Finish: 2B, No.1, No.2, No.4, BA, 6K, Mirror Finished, 8K

Standards

ASTM B160 / ASTM B161 / ASTM B162 / ASTM B366.

Incoloy 201(N02201/2.4060/Nickel201)
Chemical Composition	%	Ni		Fe	C	Mn		S	Si		Cu
	min	Remaining amount
	max	Remaining amount		0.4	0.02	0.35		0.01	0.35		0.25
Physical Characteristics	Density		8.89g/cm³
	Melting point		1440℃
Minimum mechanical properties of alloys at room temperature	Alloy state		tensile strength Rm N/mm²				Yield Strength RP0.2 N/mm²			Elonga A5%
	Inconel 201		60-85				15-45			35-55

Material Characteristics

High Purity: 99.6% nickel ensures superior performance.

Excellent Corrosion Resistance: Performs well in alkaline and acidic environments.

Thermal & Electrical Conductivity: Ideal for applications requiring efficient heat and electrical transfer.

Non-Magnetic & Low Gas Content: Suitable for electronic and high-purity applications.

Good Weldability & Fabrication: Easy to form and join using conventional techniques.

Applications of Nickel 201 Sheet

Nickel 201 Sheet is widely used in various industries, including:

Aerospace: Components exposed to extreme temperatures and corrosive environments.

Chemical Processing: Tanks, piping, and heat exchangers handling corrosive chemicals.

Electronics: Battery connectors, lead wires, and semiconductor fabrication.

Energy Sector: Nuclear and solar energy applications requiring high-performance materials.

Marine & Offshore: Components in saltwater environments due to excellent corrosion resistance.

Our Service

We are looking for partners around the world to expand our business.

Customized Solutions

Provide customized nickel plate production services according to your specific needs. Whether it is size, thickness, shape, or special surface treatment requirements.

Quality inspection

Comprehensive quality inspection ensures that each nickel plate meets international standards. At the same time, provide detailed quality inspection reports and certification documents.

Technical support

Equipped with a professional technical team, we provide you with technical support and consulting services in nickel plate application, processing, welding, etc.

Reliable Global Supply

With global distribution capabilities, we can provide reliable logistics solutions no matter where the customer

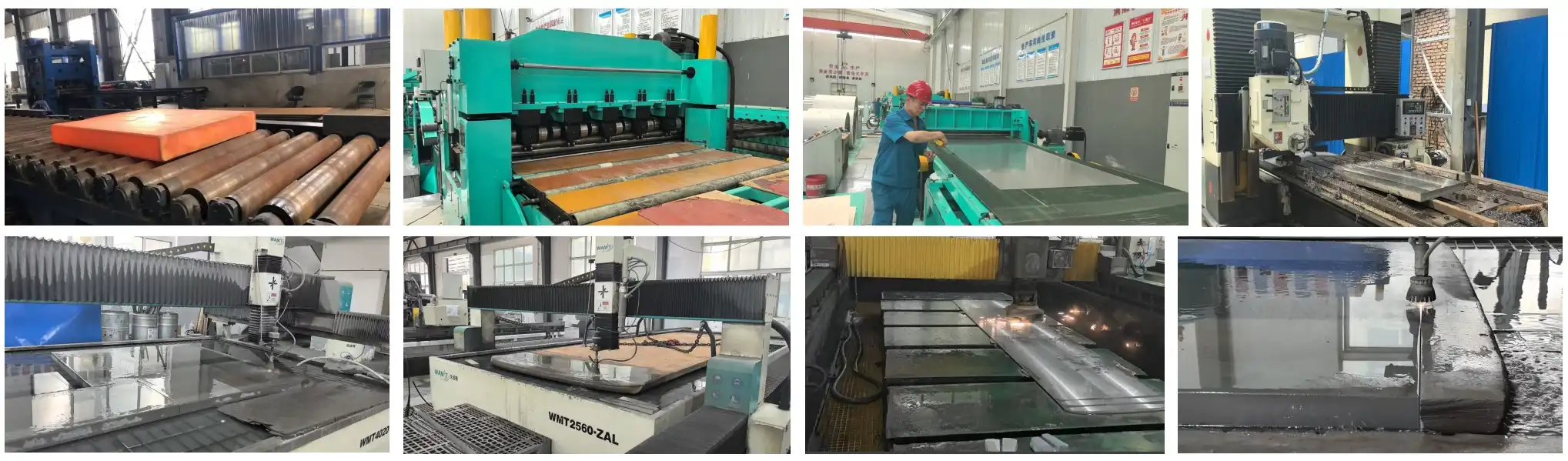

Processing value-added service

Provide further processing services for nickel plates, such as cutting, punching, welding, surface treatment, etc.

Small batch trial production service

Provide free samples or small batch trial production services to help you verify product performance and reduce trial and error costs.

FAQ:

Q1: What are the standard sizes available for Nickel 201 Sheet?

We offer this product in various forms, including plate, sheet, coils, foils, strip, and flats. Thickness ranges from 0.1 mm to 100 mm. Custom sizes and processing are also supported to meet your specific requirements.

Q2: What certifications do you have?

TSM Technology Co., Ltd is certified with ISO 9001, ISO 14001, and ISO 45001. We strictly adhere to industry standards and regulations to ensure the quality and reliability of our products.

Q3: Can you provide technical data sheets and test reports?

Yes, we provide detailed technical data sheets, certificates, and test reports for all our products. These documents are essential for ensuring that our materials meet your specific requirements and industry standards.

Q4: What are the payment methods?

We accept payment through T/T (Telegraphic Transfer) and L/C (Letter of Credit). Terms can be negotiated based on your requirements.
