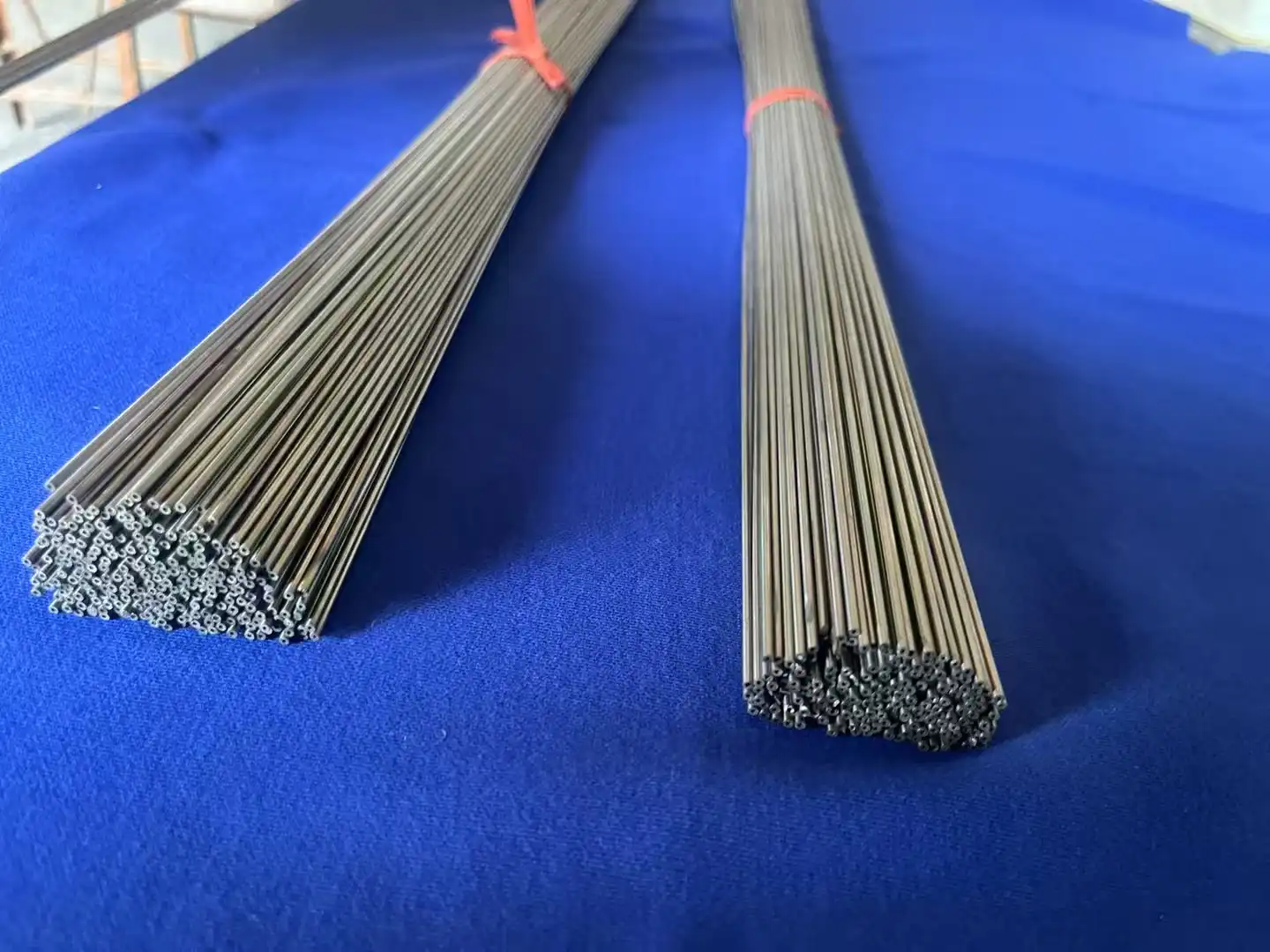

Nickel Alloy Capillary Tube

Premium Nickel Alloy Capillary Tube Manufacturer & Supplier

SM Technology Co., Ltd. is your trusted manufacturer and supplier of high-quality Nickel Alloy Capillary Tubes. We provide superior alloys like Monel, Inconel, Incoloy, and Hastelloy in various shapes, catering to the precision engineering industry and machine shops globally. Our products are renowned for their exceptional quality, performance, and reliability, meeting the stringent demands of industries like aerospace, energy, chemical processing, and medical devices. Discover the TSM advantage today!

Nickel Alloy Capillary Tube Introduction

Are you looking for capillary tubes that can withstand extreme conditions and deliver consistent performance? Look no further than Nickel Alloy Capillary Tubes from TSM Technology Co., Ltd. These specialized tubes are manufactured from high-performance nickel alloys, offering exceptional resistance to corrosion, high temperatures, and pressure. They are essential components in numerous critical applications where precision and durability are paramount. These tubes are not just components; they are crucial elements ensuring the seamless operation of your critical systems.



Technical Specifications



Material: Nickel alloy (such as Inconel, Hastelloy, Monel, Incoloy, etc.)

Standards：ASTM B622, B725, B751; DIN 17750
Outer Diameter (OD)：0.5mm – 12mm (±0.5% nominal)
Inner Diameter (ID)：0.3mm – 10mm (±1% nominal)
Wall Thickness：0.1mm – 2.5mm (±5% nominal)
Surface Finish：≤0.8μm Ra (electropolished available)
Straightness：≤1mm per 300mm length

Critical Performance Advantages:

Corrosion Resistance: Withstand acidic, alkaline, and chloride-rich environments (ASTM G48/G78 tested).
High-Temperature Stability: Operate continuously up to **1200°C** (2192°F).
Precision Tolerances: Outer Diameter ±0.01mm | Wall Thickness ±5%
Custom Fabrication: OD 0.5mm–12mm | Wall 0.1mm–2.5mm |

Certified Quality Assurance：

AS 9120 certified
Fully traceable MTCs (EN 10204 3.1/3.2)
Non-destructive testing (ET/UT/RT)

Customization Capabilities

Material Optimization: Alloy selection guidance for your specific media (H₂S, HCl, etc.)
Post-Processing: Annealing, pickling, passivation, bending (3D CNC)
Packaging: VCI foil, vacuum sealing, wooden crates for export

Product Advantages of TSM's Nickel Alloy Capillary Tubes

Why choose TSM Technology Co., Ltd. for your Nickel Alloy Capillary Tube needs? Here are just a few reasons:

Exceptional Corrosion Resistance: Our capillary tubes withstand harsh chemicals and corrosive environments, ensuring long-term reliability.

High-Temperature Performance: Designed for demanding applications, our tubes maintain their integrity even at elevated temperatures.

Superior Strength and Durability: Crafted from premium nickel alloys, our tubes offer exceptional mechanical properties, guaranteeing longevity.

Precise Dimensions: We adhere to strict tolerances, ensuring consistent and reliable performance in your systems.

Customization Options: Tailored to your specific requirements, we offer custom sizes, lengths, and alloy compositions.

Applications of Nickel Alloy Capillary Tubes

Our products are utilized across a wide range of industries, including:

Aerospace: Hydraulic systems, instrumentation, and control lines.

Energy: Nuclear reactors, gas turbines, and heat exchangers.

Chemical Processing: Chemical transfer lines, and instrumentation.

Petrochemicals: Oil and gas exploration, refining, and processing equipment.

Medical Devices: Surgical instruments, and implantable devices.

Electronic Appliances: High-temperature components, sensors, and connectors.

FAQ

Q: What materials are your Nickel Alloy Capillary Tubes made from?

A: We manufacture our capillary tubes from a range of high-performance nickel alloys, including Inconel, Hastelloy, Monel, and Incoloy.

Q: Can you provide custom sizes and lengths?

A: Yes, we offer customized solutions to meet your specific requirements. Contact us to discuss your needs.

Q: Do you provide material certifications?

A: Yes, we provide material chemical composition reports, mechanical property reports, and non-destructive testing reports upon request, ensuring compliance with international standards.

Q: What industries do you serve?

A: Our capillary tubes are used in various industries, including aerospace, energy, chemical processing, petrochemicals, medical devices, and electronics.

Contact Us

Have questions or need a custom quote about the Nickel Alloy Capillary Tube? Reach out to us at info@tsm-technology.com. We're here to help you find the perfect nickel alloy solutions for your projects.
